For many people, mobility challenges are felt most acutely in the everyday aspects of life: walking across a parking lot, getting through a grocery store, navigating an airport, visiting family, or spending an afternoon in the park while worrying about fatigue, pain, or balance.
The Journey Air Elite Max Ultra-Lightweight Portable Power Chair was designed for people who want the highest level of powered mobility support without the bulk of a traditional power wheelchair. It is one of the first devices of its kind to provide extra weight support while also catering to people seeking to travel farther on their excursions. The Air Elite Max combines an ultra-lightweight carbon fiber frame, foldable travel-friendly design, roomy seat, 330-lb weight capacity, and two lithium batteries that work together to provide up to 19.8 miles of range.
In simple terms: the Air Elite Max is built for people who want a lighter weight electric mobility chair with longer range, more seating comfort, and greater weight capacity than many compact power chairs offer.
Does that sound like you? Then let's dive into the details on how the Air Elite Max works, what makes it different, who it may be right for, and how to use and care for it safely.
In This Article:
Quick Start Guide
Getting started with the Journey Air Elite Max is fairly straightforward, but it is worth going slow the first few times you use it. Before your inaugural ride, fully charge the batteries, inspect the chair, and then practice using the controls in a safe, open area at the lowest speed setting.
To begin:
- Place the chair on flat, stable ground.
- Unfold the frame fully.
- Make sure the seat base tubes are pressed securely into place.
- Attach and secure the footrests.
- Install the joystick controller on the armrest and tighten it.
- Slide both batteries into position until each one clicks securely into place.
- Turn on both batteries.
- Make sure the brake levers are in electric drive mode, not manual mode.
- Sit back in the seat, fasten the safety belt, and place your feet on the footrests.
- Turn on the controller and begin at the lowest speed setting.
The joystick controls direction and speed. Push it gently forward to move forward, pull it back to reverse, or move it left or right to turn. The farther you push the joystick, the faster the chair moves. When you release the joystick, it returns to center and the chair stops automatically.
Start slowly until you feel comfortable with how the chair responds.
Technical Specifications at a Glance
The Air Elite Max is part of Journey's Air Series of lightweight folding power chairs. It is the top-of-the-line model in the series, with the highest weight capacity, longest range, and most premium comfort features.
Key specifications include:
| Feature | Air Elite Max Specification |
|---|---|
| Overall dimensions | 36″ L x 24″ W x 39″ H |
| Folded dimensions | Approximately 38″ L x 38″ W x 10.25″ H |
| Chair/frame weight | 24.25 lbs without battery |
| Battery weight | 6.75 lbs each |
| Weight capacity | 330 lbs |
| Seat width | 17.7″ |
| Seat depth | 16.9″ |
| Seat height | 20.3″ |
| Arm height | 9.4″ |
| Maximum speed | 3.7 mph |
| Range | Up to 19.8 miles |
| Turning radius | 35.4″ |
| Braking distance | 39.4″ on a level surface |
| Motors | Two 24V/150W motors |
| Batteries | Two 24V/12Ah lithium batteries |
| Charger | 24V/2A off-board charger |
| Front wheels | 6.5″ flat-free tires |
| Rear wheels | 10.6″ flat-free tires |
| Back pouch | 9.5″ x 12″ |
| Battery carry case | 8.5″ x 6.5″ |
| Charging time | 8–12 hours |
| Air travel | FAA-compliant; check airline before flying |
As with any power chair, real-world performance can vary based on your weight, the terrain, temperature, incline, speed setting, battery condition, and driving habits. Smooth, flat surfaces will generally provide the best range and performance.
Construction and Engineering
The Air Elite Max features the highest level of construction, engineered for performance while also ensuring durability. These are a few of the key components that make it possible.
Ultra-Light Carbon Fiber Frame
The Air Elite Max's biggest engineering advantage is its carbon fiber frame. Carbon fiber is prized because it is strong and durable, while also being extremely lightweight. In a mobility device where every pound affects how easy the chair is to lift, transport, and use in daily life, carbon fiber is king.
Rather than requiring a vehicle lift, ramp, or caregiver assistance for transportation like many traditional power chairs, the Air Elite Max reduces that burden via its 24.25-pound frame (without batteries).
The chair also folds for easy storage, which makes it practical for errands, family visits, appointments, and trips. To fold it, turn off the power, fold the footrests upward, then pull up on the seat levers and handle straps under the seat cushion. Once folded, the chair can be placed in many car trunks or storage areas.
Because folding chairs have moving parts, always make sure the frame is fully opened and locked before sitting down. Keep fingers away from pinch points when opening or folding the chair.
Dual-Motor Power
The Air Elite Max uses two 150W motors, one for each drive wheel. This dual-motor setup helps the chair accelerate smoothly, turn predictably, and maneuver in tighter indoor spaces.
The chair's maximum speed is 3.7 mph, a comfortable walking pace, making it appropriate for stores, hallways, and restaurants, as well as smooth outdoor surfaces such as sidewalks and paved paths.
Speed is controlled through five gear settings:
| Gear | Approximate Speed |
|---|---|
| 1 | 1.2 mph |
| 2 | 1.9 mph |
| 3 | 2.5 mph |
| 4 | 3.1 mph |
| 5 | 3.7 mph |
Lower speeds are useful indoors, if you're moving in a crowd, when you're navigating around furniture, or while learning the controls. Higher speeds are better suited for open, smooth areas where there is enough room to safely maneuver.
Automatic Braking
Instead of requiring the user to squeeze a brake handle, the Air Elite Max's system responds to joystick input. When the joystick returns to center or is released, the chair stops. This makes operation simpler and more intuitive, especially for people who are new to powered mobility, and is an important safety feature for people with limited hand strength, slower reaction time, or reduced fine motor control.
The braking system includes brake levers on the motors. These levers allow the chair to be switched between powered drive mode and manual push mode. Manual mode should only be used when another person is pushing the chair. Do not switch into manual mode while seated on a slope, because the chair may roll unexpectedly.
Flat-Free Tires
The Air Elite Max has 6.5-inch front wheels and 10.6-inch rear wheels, both with so-called flat-free tires. That means these tires do not require inflation and will not go flat like air-filled tires—a major peace of mind.
Nevertheless, these are not your rugged all-terrain type of tires. They are designed for stable use on indoor flooring and smooth outdoor surfaces. The chair should not be used on stairs, escalators, sand, mud, snow, ice, wet grass, loose gravel, or rough terrain. Avoid driving over obstacles taller than 1 inch, and use ramps whenever possible.
Dual Lithium Battery System
One of the distinguishing factors of the Air Elite Max is how long its battery power lasts. Unlike some models that offer 4-6 miles of travel before requiring a recharge, this chair includes two 24V/12Ah lithium batteries that together provide up to 19.8 miles of range under ideal conditions.
Automatic switching between these two lithium batteries means that when one battery runs low, the chair switches to the other without requiring you to stop and manually change batteries, a significant benefit for longer outings or full days away from home.
For best results, charge the batteries fully before first use and recharge them regularly. The recommended charging time is 8–12 hours. The charger lights show charging status: blue indicates charging, while green indicates charging is complete.
For safety reasons, only use the charger that came with the chair. Using another charger may damage the battery or create a safety risk.
Seating, Comfort, and Controls
A key benefit of the Journey Air Elite Max is the level of comfort you'll experience with its wide, deep seat and plush seat and back cushions. And if you're looking for an easy driver, its joystick controller even offers voice notifications.
Roomier Seat and Higher Capacity
The Air Elite Max is built for comfort and stability, with a 17.7-inch seat width, 16.9-inch seat depth, and 330-lb weight capacity. The seats are made with memory foam cushioning and the backrest provides support while still allowing the chair to fold for travel and storage. The armrests can flip up for easier transfer.
Compared with many ultra-light folding power chairs, the generous proportions give the Air Elite Max a unique advantage.
Joystick Controller
The Air Elite Max is operated with a joystick controller. The controller includes:
- On/off button
- Speed increase/decrease buttons
- Horn
- Battery gauge
- Display screen
- Headlight control
- Mileage and speed display
- Voice notification options
- Display style settings
- Unit settings for miles or kilometers
Operation is simple: Push the joystick gently in the direction you want to go. Release it to stop. The battery gauge is also important. When all bars are lit, the battery is full. When only a few bars remain, it is time to plan for charging.
The Air Elite Max includes more advanced controls than basic power chairs. Users can adjust the display style, language, mileage units, and voice alerts. Depending on preference, users can keep all sounds on, turn most sounds off while keeping the horn active, or customize specific alerts.
These features can be helpful for users who want audio feedback while operating the chair, or be adjusted for people who prefer a quieter experience.
Who Is the Air Elite Max Designed For?
If you're looking for a lightweight, foldable power chair with added comfort, higher weight capacity, and longer range, the Air Elite Max should be a serious consideration. It is not meant to replace every type of mobility device, but it fills a very useful space between basic transport chairs, scooters, and heavier full-size power chairs.
The Air Elite Max may be right for you if…
- You want a lightweight power chair that folds for travel and storage.
- You need more range for longer outings.
- You want a chair that can support up to 330 lbs.
- You prefer a roomier seat than many compact travel chairs offer.
- You want joystick-controlled mobility rather than a scooter tiller.
- You plan to use the chair in stores, airports, sidewalks, medical offices, restaurants, or around the home.
- You want a chair that is easier to load into a vehicle than a traditional power wheelchair.
- You travel and want an FAA-compliant power chair.
- You can transfer safely in and out of the chair, or you have assistance when needed.
- You do not need a complex, custom rehabilitation wheelchair.
If any (or many) of the above apply, or you fall into one of the categories below, the Air Elite Max may be a good option.
Older Adults With Reduced Walking Endurance
If you can still walk, but not as far or as comfortably as you used to, or arthritis, joint pain, back pain, balance concerns, fatigue, and general deconditioning make everyday errands feel difficult, the Air Elite Max can help. Instead of skipping the grocery store, avoiding a museum, or worrying about the distance from a parking lot to an appointment, you can conserve energy and stay engaged in daily life.
People Managing Chronic Conditions
People with chronic conditions may experience fatigue, shortness of breath, pain, or weakness. Conditions such as COPD, heart disease, multiple sclerosis, Parkinson's disease, arthritis, stroke recovery, and neuropathy can all make distance walking more difficult.
A power chair like the Air Elite Max may help you manage daily activities while reducing strain. The joystick requires less upper-body effort than a manual wheelchair, and the lightweight frame makes the chair easier to transport than many standard power wheelchairs.
If you have complex medical needs, you should speak with a doctor, physical therapist, occupational therapist, or mobility specialist before choosing a power chair.
Heavier Users Who Need a Lightweight Chair
One of the Air Elite Max's most important differentiators is its 330-lb weight capacity. Many ultra-light folding chairs support less weight, which can limit options for larger users.
The Air Elite Max combines a higher capacity with a lightweight carbon fiber frame. That makes it a strong option for users who need both support and portability.
Travelers and Active Users
Mobility-challenged but love to travel? The Air Elite Max is designed with adventures in mind. It folds compactly, includes lithium batteries, and is described as FAA-compliant for commercial air travel.
For air travel, remove the battery as instructed and carry it in the protective battery case. Battery rules can vary by airline, so always contact your airline 24–48 hours before your trip to confirm their mobility device and lithium battery requirements.
The chair may be especially helpful in airports, cruise terminals, hotels, resorts, museums, theme parks, and other places where walking distances can add up quickly.
Real-World Use Cases
Of course, like most people, you'll likely wind up using your power chair for daily duty, not just flyaway vacations. Let's take a look at how it performs in real-world scenarios.
Indoor Spaces
Because it has a 35.4-inch turning radius, the Air Elite Max can maneuver in tight spaces, making it a good choice for moving between rooms, navigating malls and stores, and more. As with any power chair, you should check whether your home has enough clearance in doorways, hallways, bathrooms, and turning areas before purchasing (remember, it's 24 inches wide and 36 inches long).
Daily Outings
The Air Elite Max is ideal for trips to the store, pharmacy pickups, medical appointments, and restaurant dates. The lower speed settings are helpful in crowded environments, while the higher settings can be used in open areas.
The back pouch holds essentials such as a phone or light personal items. Avoid overloading the chair or hanging heavy bags from the armrests, as this can affect balance.
Family Trips
If you've been avoiding cruises or destination travel with loved ones because you worry about the walking distance or feeling fatigued, a lightweight folding power chair is worth considering. The Air Elite Max can be folded and transported more easily than many traditional power wheelchairs. (Before booking a trip, ask the travel company or hotel about steps, doorway widths and hallways, to make sure your chair can fit.)
Outdoor Activity
The Air Elite Max can be used outdoors on flat, smooth surfaces such as sidewalks, paved paths, and driveways. Avoid steep slopes, wet surfaces, grass, gravel, mud, sand, snow, ice, potholes, and uneven ground. The chair is water-resistant against small splashes, but it is not waterproof. Do not drive it in rain or through puddles.
What Sets the Air Elite Max Apart From Competitors
If you're shopping for a power chair, you've likely noticed: There are many options and a lot of them sound the same. So what makes the Air Elite Max different from the next chair? These are a few of the unique features, designed to help you get the most out of your day.
It combines lightness with higher weight capacity. Most power chairs force a tradeoff: either they are lightweight and lower-weight capacity, or they are higher-weight capacity and much heavier. The Air Elite Max has a unique solution: a high-tech lightweight carbon fiber frame that can support 330-lb weight capacity.
It has a roomier, more comfortable seat. Given that it's built for a wide range of body sizes, it also makes sense that the Air Elite Max has a wider seat and memory foam cushioning for a comfortable ride.
It has dual auto-switching battery life. The two-battery system is one of the biggest practical advantages of the Air Elite Max. With up to 19.8 miles of range, it is built for longer days. The automatic switching feature means you do not need to stop and manually change batteries when the first one runs low.
It folds compactly for travel and storage. No need for a large vehicle lift or complicated disassembly. The Air Elite Max easily stores at home, loads into a vehicle, or collapses in confined airplane spaces.
The controls are user-friendly and smart-tech design. The controller includes speed settings, battery information, mileage display, voice alerts, and customizable display options. These features help you better understand the chair's status and personalize your experience.
Safety Tips Before You Drive
Before each use, complete this checklist:
- Make sure the chair is fully unfolded and secure.
- Check that both batteries are properly installed.
- Confirm the brake levers are in drive mode.
- Make sure the controller is off before getting in or out.
- Sit fully back in the seat.
- Fasten the safety belt.
- Keep your feet on the footrests.
- Start at the lowest speed setting.
- Avoid leaning too far forward, backward, or to the side.
- Do not carry passengers.
- Do not exceed the 330-lb weight capacity.
- Do not use the footrests or armrests as your main support when transferring.
- Do not drive on stairs, escalators, steep slopes, wet ground, snow, ice, sand, mud, or loose gravel.
- Avoid obstacles taller than 1 inch.
- Keep the chair away from rain and puddles.
- Do not operate the chair under the influence of alcohol.
If you use oxygen, keep oxygen equipment away from electrical components and heat sources. If you take medication that affects alertness, balance, reaction time, or coordination, ask your doctor whether it is safe for you to operate a power chair.
Charging the Batteries
The Air Elite Max uses two lithium batteries and a 24V/2A off-board charger. Use only the charger that came with the chair.
To charge:
- Turn the controller off.
- Make sure the chair is in drive mode, not manual mode.
- Connect the charger's 3-pin plug to the controller.
- Plug the charger into a standard wall outlet.
- Check the charger light.
- Blue means the batteries are charging.
- Green means charging is complete.
- Unplug the charger and store it safely.
For best results, charge in a moderate indoor environment. The manual recommends charging in an area between 32°F and 95°F. Avoid charging in extreme heat, extreme cold, or damp conditions.
Recharge the battery when the gauge is low. Do not intentionally run the batteries all the way down.
Care, Maintenance, and Troubleshooting
Routine maintenance helps keep the Air Elite Max safe, reliable, and comfortable. Follow this care routine to make sure your power chair is with you for the long haul.
Regular Care
Before use, do a quick check of:
- Joystick function
- Brake system
- Battery charge
- Battery connections
- Tires
- Frame
- Footrests
- Armrests
- Visible wiring
- Folding mechanism
Weekly or monthly, take a closer look at the wheels, frame, electrical connections, and overall condition. If anything feels loose, damaged, corroded, or unusual, stop using the chair and contact your Journey dealer.

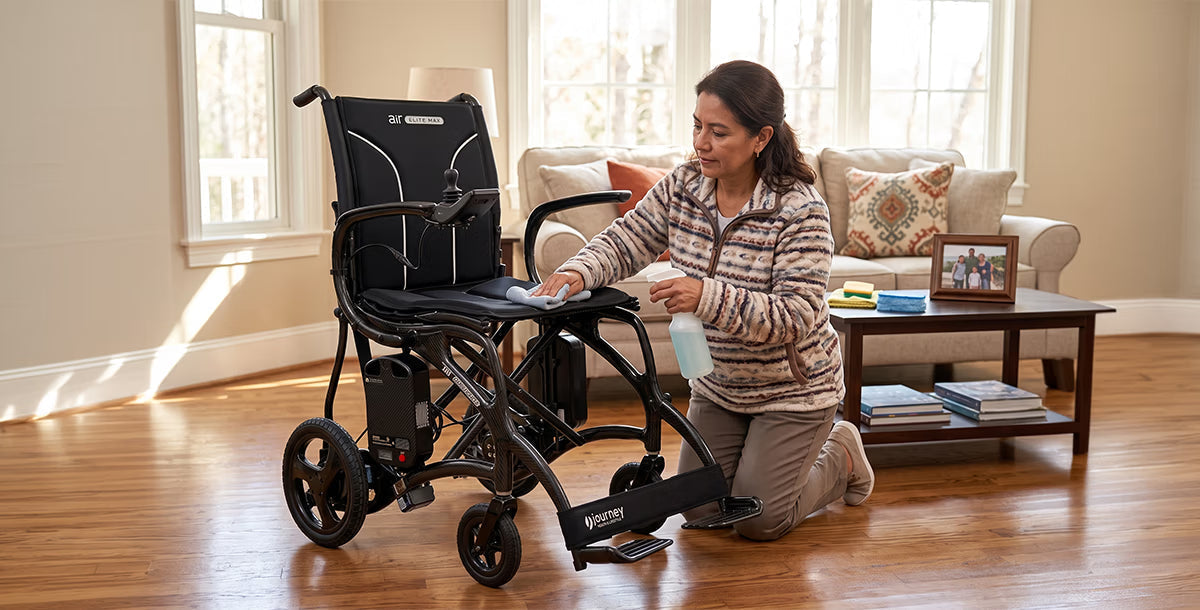

Cleaning
To clean the chair:
- Turn off the power first.
- Wipe the frame with a damp cloth.
- Use gentle, neutral soapy water on the seat and armrests if needed.
- Dry surfaces thoroughly.
- Do not wash the chair with a hose.
- Do not expose electrical parts to water.
- Do not use harsh chemicals, which can damage surfaces or make them slippery.
Store the chair in a clean, dry, moderate environment. Avoid prolonged exposure to heat, cold, humidity, or direct water.
Basic Troubleshooting
| Issue | Possible Cause | What to Try |
|---|---|---|
| Chair will not power on | Battery not installed correctly or low battery | Check battery placement, turn on both batteries, recharge if needed |
| Chair powers on but will not move | Brake levers may be in manual mode | Return brake levers to drive/electric mode |
| Chair stops unexpectedly | Overload protector may have activated | Wait 1–2 minutes, then try again on a flat surface |
| Chair beeps or LEDs flash | Controller has detected a fault | Release the joystick, turn the chair off, check connections, restart |
| Battery drains faster than expected | Cold weather, hills, user weight, speed, terrain, or aging battery | Recharge fully and use on smoother terrain; contact support if range remains low |
| Chair feels harder to control | Speed setting may be too high | Lower the speed setting and practice in an open area |
| Chair pulls to one side | Wheel obstruction, motor issue, or uneven surface | Inspect wheels and remove debris; contact support if it continues |
| Charger light does not change | Charger, outlet, or connection issue | Check outlet and charger connection; contact support if unresolved |
| Chair will not unlock | Anti-theft lock may be active | Follow the lock/unlock steps using the power button and joystick |
| Reduced performance in heat or cold | Battery and electronics affected by temperature | Move to a moderate environment and allow chair to return to normal temperature |
If the chair shows a controller fault, the LED lights may flash and an alarm may sound. If basic troubleshooting does not solve the problem, contact Journey Health & Lifestyle customer support or the dealer where the chair was purchased.
Lock and Unlock Feature
The Air Elite Max includes an anti-theft lock function.
To lock the chair:
- Turn the power chair on.
- Hold the power button for at least 3 seconds.
- While holding the power button, push the joystick forward once and backward once.
- Listen for two quick beeps followed by a series of beeps.
When locked, only the power button will work. The joystick and other buttons will not operate.
To unlock the chair:
- Turn the power chair on.
- Hold the power button for at least 3 seconds.
- While holding the power button, push the joystick forward once and backward once.
- Listen for a single beep.
That single beep means the chair is unlocked and ready to use.
Warranty and Support
Journey Health & Lifestyle provides a 12-month warranty on the Air Elite Max frame, mechanical components, electrical components, and motor. The originally supplied batteries, tires, fabric seat, seat back, and seat cushion are covered for six months from the original purchase date.
Warranty coverage applies to defects in materials and workmanship. It does not cover damage caused by misuse, unauthorized modifications, improper maintenance, accidents, or normal wear.
The product page also notes that most Journey products are eligible for reimbursement with an FSA or HSA. Journey does not diagnose, prescribe, accept, or process insurance claims directly.
Is The Journey Air Elite Max Right for You?
If you want a lightweight power chair with more comfort, range, and capacity than many compact travel models provide, this power chair may fit your needs. Its carbon fiber frame keeps the chair light and portable, while the dual-battery system supports longer outings with up to 19.8 miles of range. The 330-lb weight capacity, roomy memory foam seat, flat-free tires, advanced controller, and foldable design make it a strong option for users who want powered mobility that fits into daily life.
For older adults, travelers, people with chronic conditions, and anyone who wants to conserve energy while staying active, the Air Elite Max offers a practical blend of independence, comfort, and portability.
As with any mobility device, the best choice depends on your body, your lifestyle, and where you plan to use it most. If you have complex mobility needs, difficulty transferring, significant balance concerns, or a medical condition that affects safe operation, consult a healthcare professional before choosing a power chair.
Ready to Learn More?
Need more details on the Journey Air Elite Max Ultra-Lightweight Portable Power Chair? Contact our customer service at 888-404-1724.
